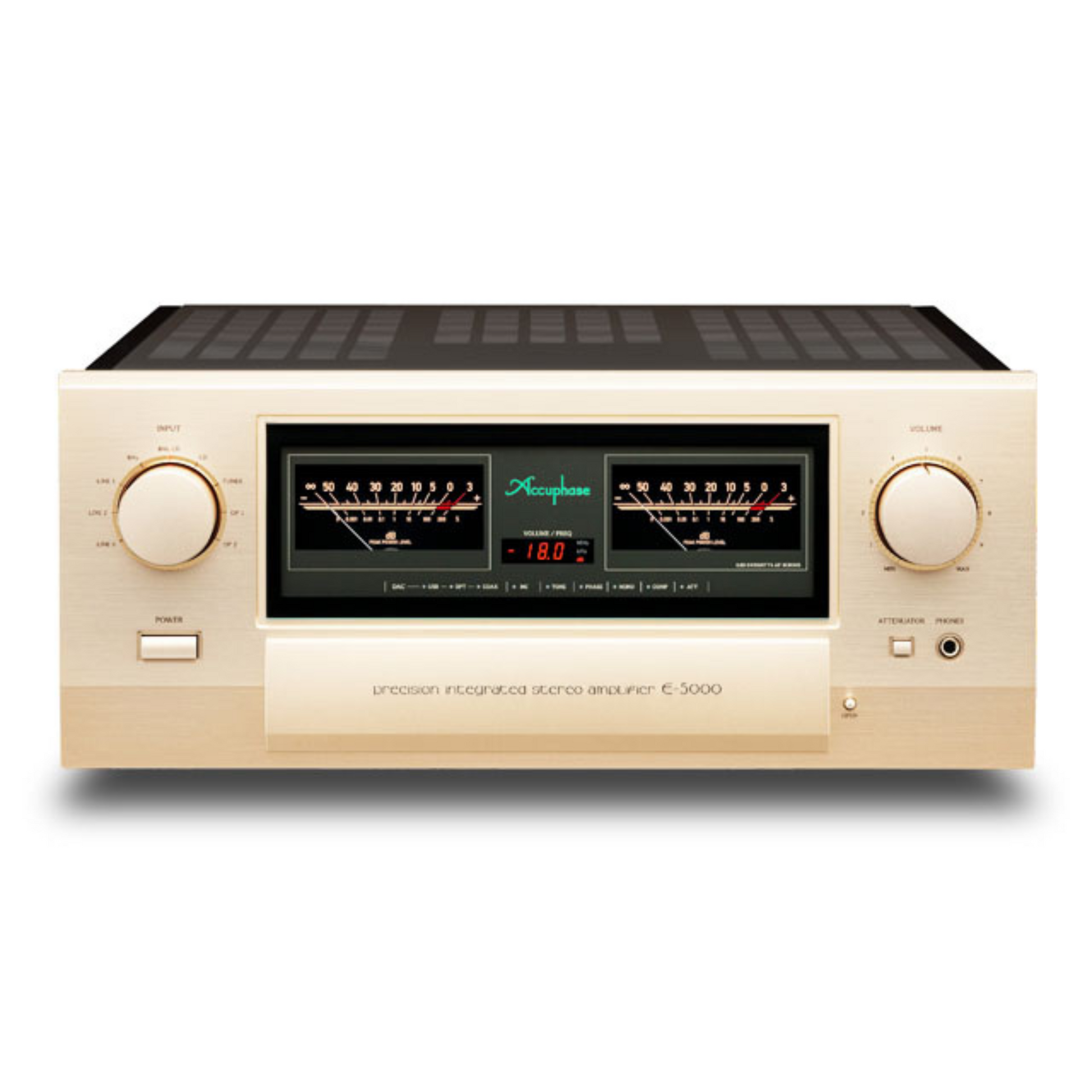

Accuphase E-5000 Integrated Stereo Amplifier

The E-5000 stands as Accuphase’s premier Class AB integrated amplifier, crafted to celebrate the company’s 50th milestone. Its preamplifier section incorporates the advanced Balanced AAVA volume control, while the power amplifier section employs an instrumentation amp and power transistors arranged in a robust five-fold push-pull configuration, operating in Class AB. These meticulously engineered circuits ensure a fully balanced signal path from input to output. With its expertly designed circuitry and formidable output stage, the E-5000 integrated amplifier delivers every musical note with stunning clarity.

• Balanced AAVA volume control
• Highly reliable logic-control signal switching relays

• Ample input connectors (Five line level and two balanced)

• Line level input and output connectors for a recorder

• Individual phase setting for each input

• Stereo signal can be switched to monophonic operation

• Left / right balance control through Balanced AAVA

• Volume attenuator that can instantly reduce sound as low as –20 dB

• Loudness compensator to adjust audible sonic balance

• Tone controls using summing active filters
• Power amplification stage employs instrumentation amplifier principle

• Current feedback amplification circuit topology assures excellent phase characteristics in high range

• Speaker output protection circuit guards against short-circuiting

• Protection circuitry using low impedance, highly reliable MOS-FET switches

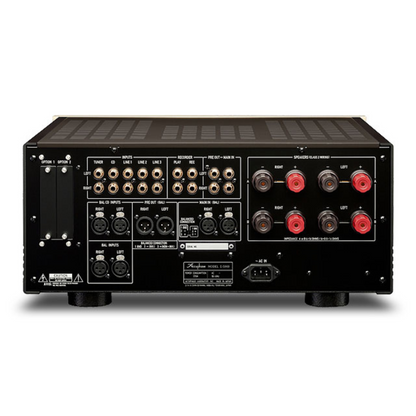

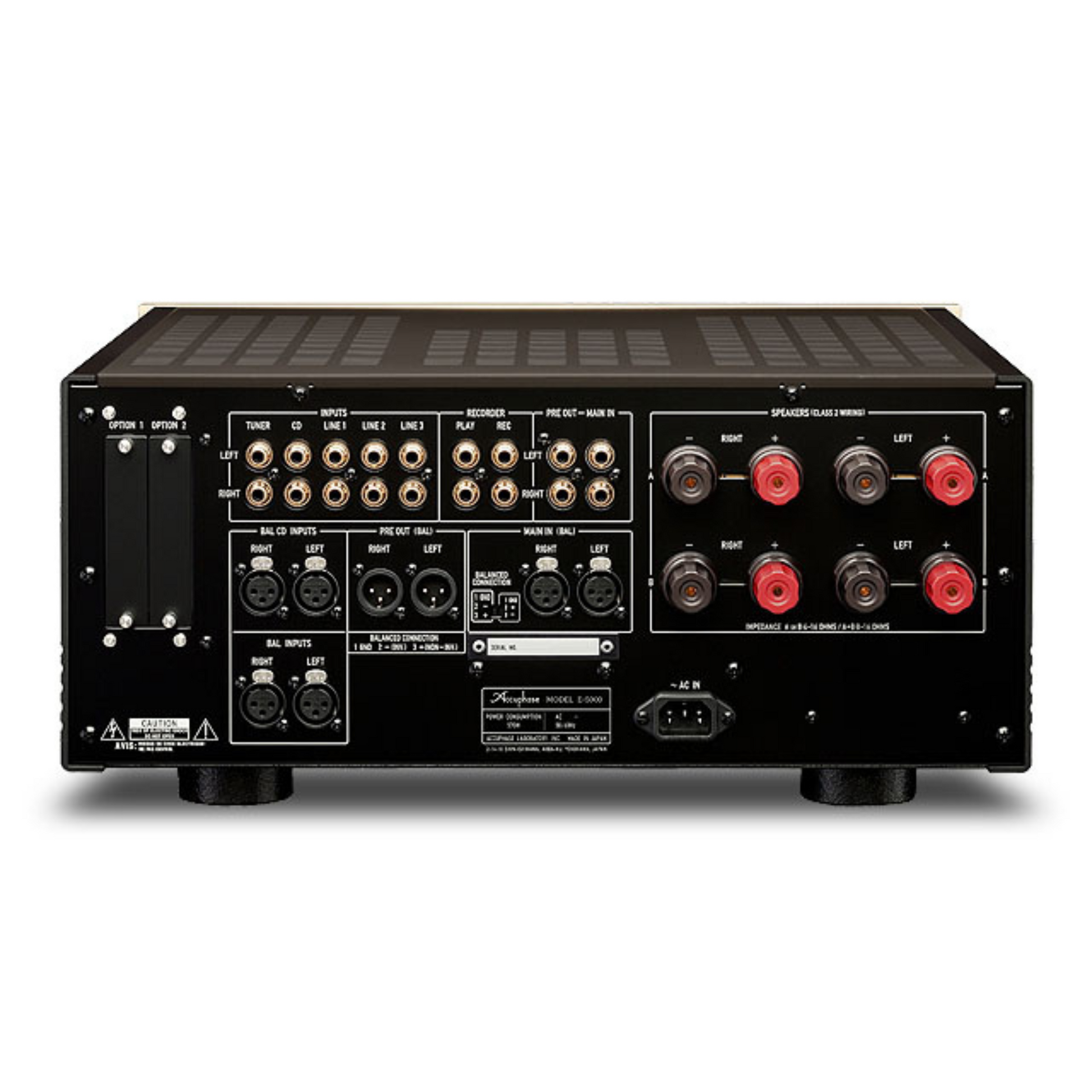

• Two massive speaker connectors for output switching and simultaneous output

• Line level and balanced outputs at the preamplifier section support bi-amping connection

• Line level and balanced inputs at the power amp section allow use as a power amplifier

• Dedicated, high-quality headphone amplifier constructed with discrete components

• Two expansion slots for option boards
