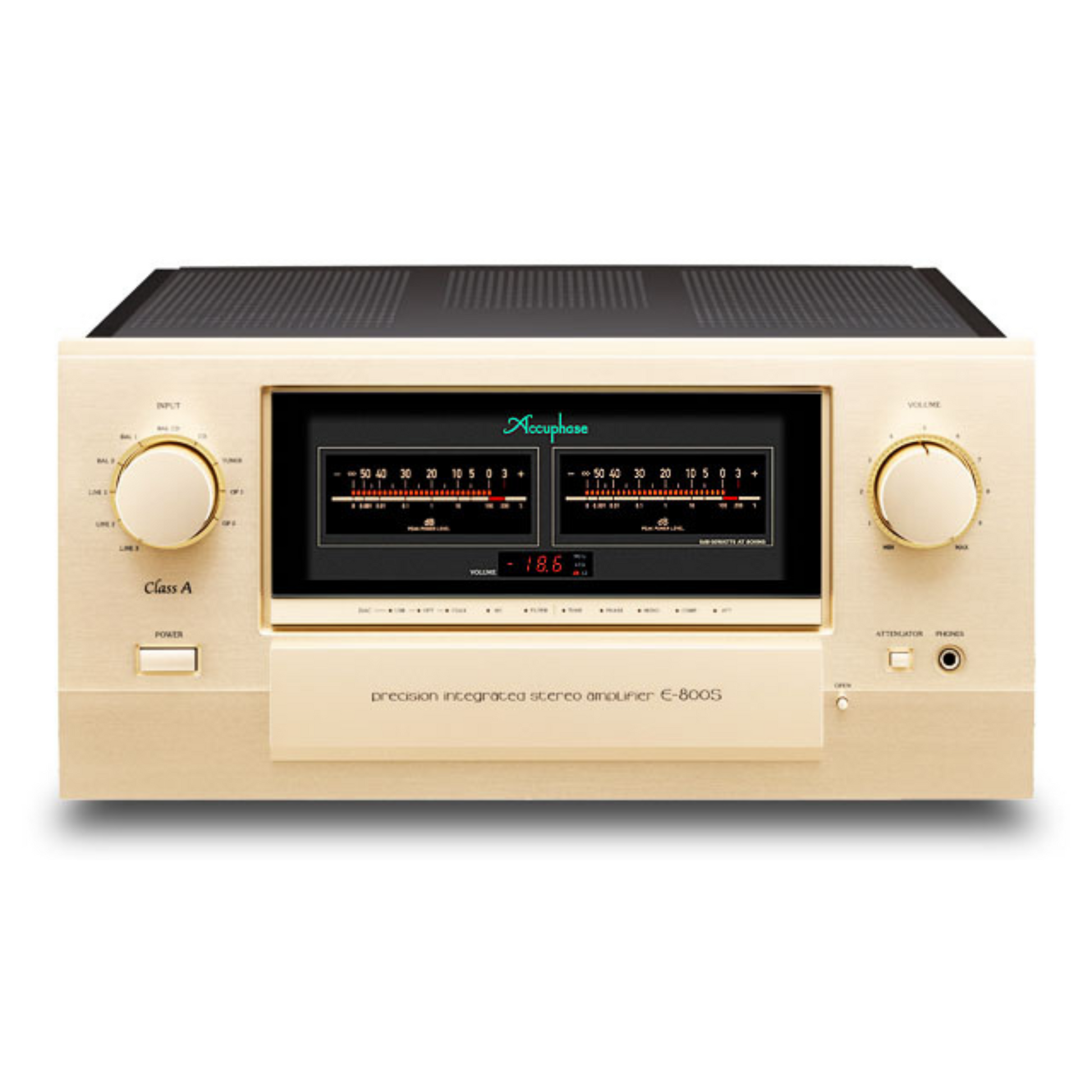

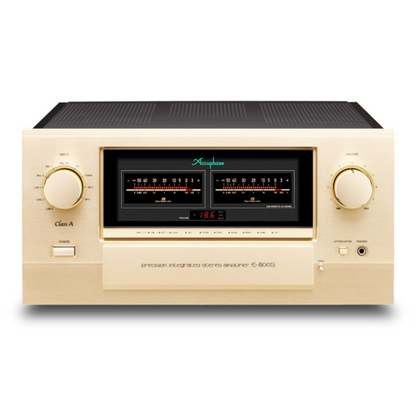

Accuphase E-800S Integrated Stereo Amplifier

The E-800S stands as Accuphase’s premier integrated amplifier, embodying the pinnacle of the company’s expertise in amplifier design. Its preamplifier section features a sophisticated Balanced AAVA volume control, while the power amplifier stage utilizes an instrumentation amplifier design with a robust six-fold parallel push-pull configuration of power MOS-FETs, operating in pure Class A to effortlessly drive any loudspeaker with exceptional sound quality. Revel in the immersive sonic experience delivered by the E-800S during playback.

• Integrated amplifier with fully balanced configuration from input to output

• Balanced AAVA type volume control
• High-accuracy, high-rigidity volume sensor construction
• Power amplification stage configured as an instrumentation amplifier
• Six-fold parallel push-pull configuration using power MOS-FETs driven in Class A
• Linear power output of 50 watts into 8 ohms, 100 watts into 4 ohms, or 200 watts into 2 ohms
• High damping factor of 1,000
• Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
• Protection circuitry using MOS-FET switches

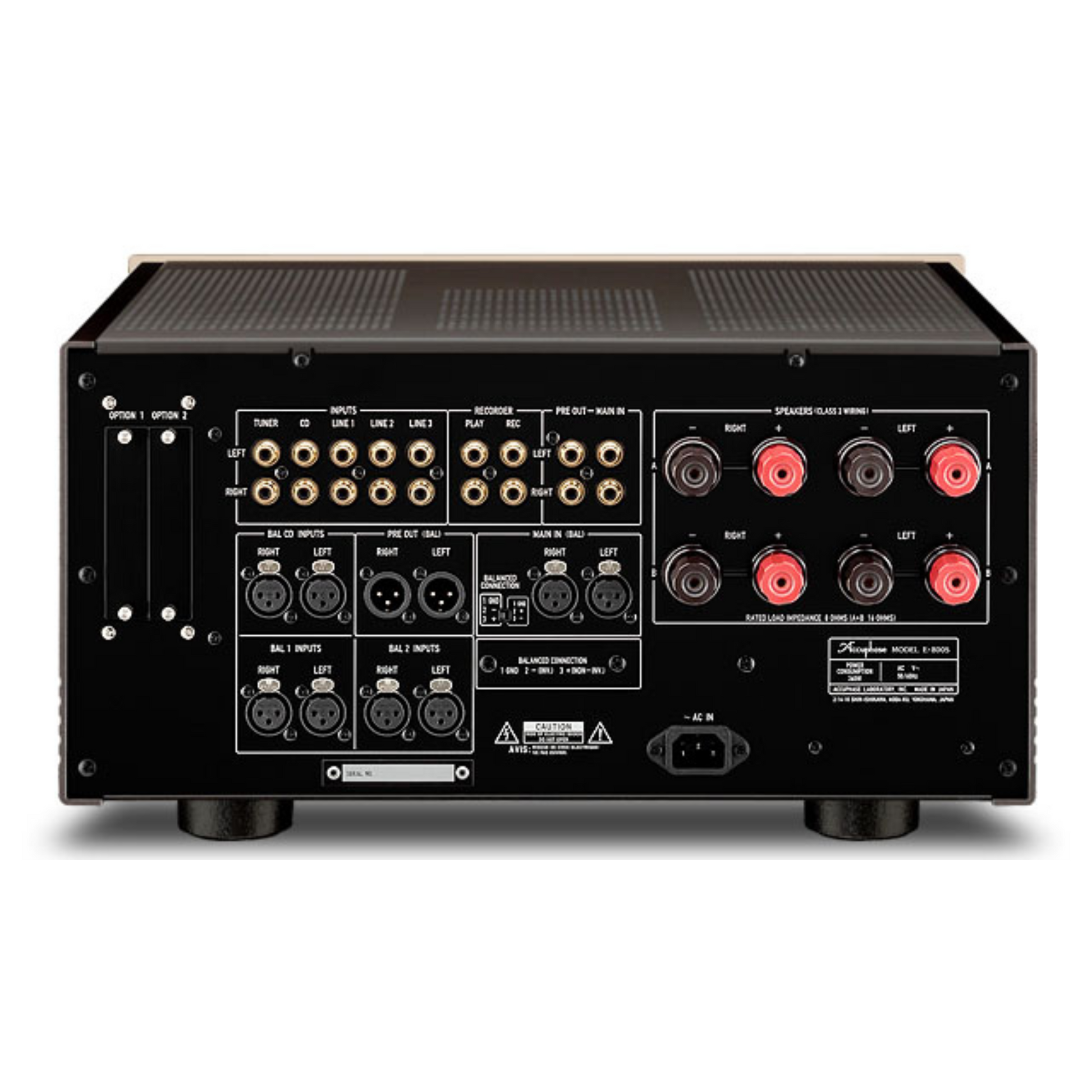

• Three sets of balanced inputs
• Dedicated, high-quality headphone amplifier with discrete circuitry
• Speaker output protection circuit guards against short-circuiting
• High-carbon cast iron insulators for superior vibration damping
• Two expansion slots for option boards
