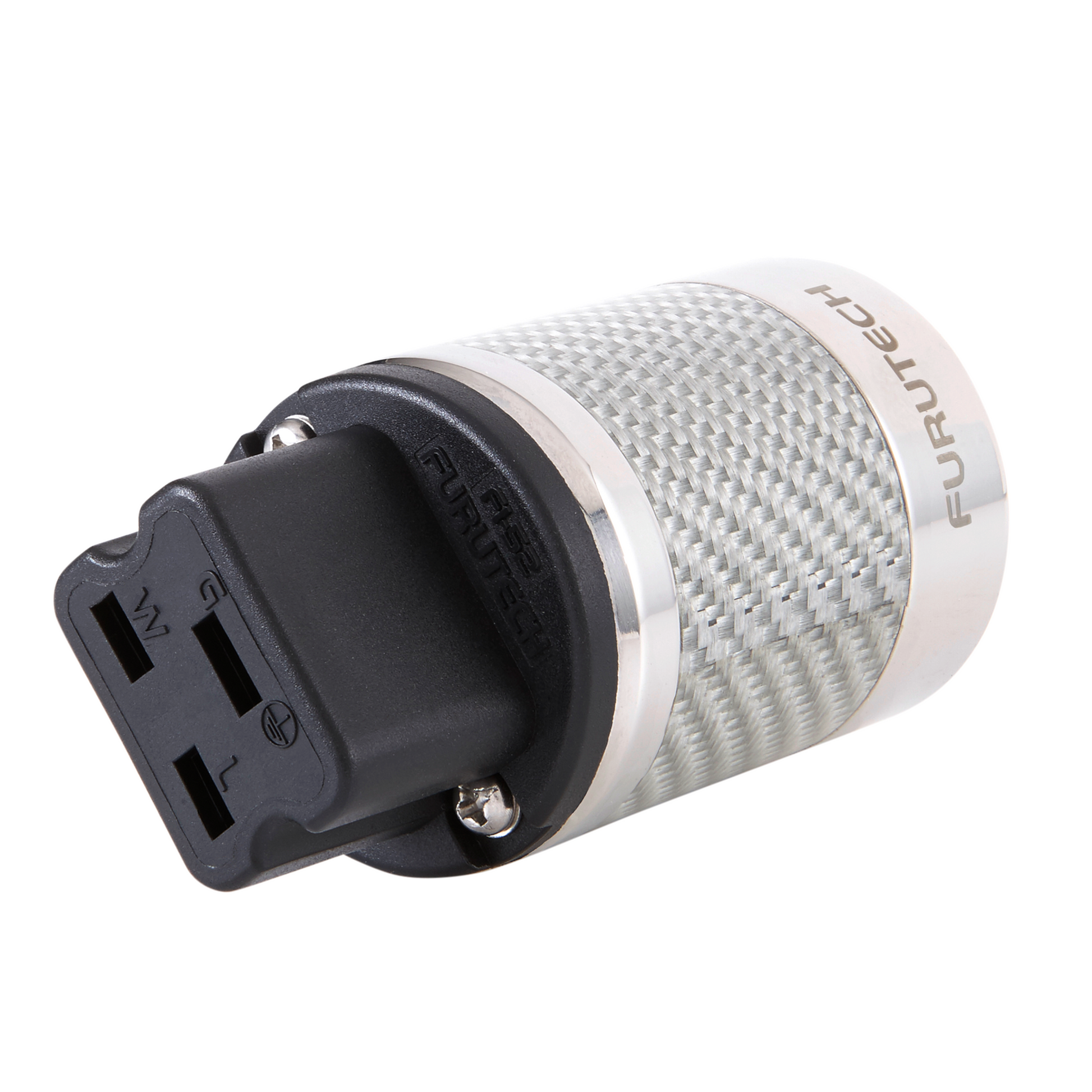

Furutech FI-52 NCF High End Performance 20A IEC Connector

Furutech FI-52 NCF High End Performance 20A IEC Connector

$349.00 USD
$559.00 USD $349.00 USD
Sale Sold out

Product Features

α (Alpha) Pure-Copper Rhodium-plated Conductor
Earth (Ground) Jumper System (US Patent No.: 6,669,491/European:EP1445837)
Nylon/fiberglass body with a special anti-resonance nano-sized crystalline, piezo ceramic particles and carbon damping material

Ultimate Experience

Multilayered nonmagnetic stainless steel and silver plated carbon fiber housing incorporating an acetal copolymer. The best of damping and insulation materials improve frequency extension and tonal balance.
Metal cable clamp improves grip and reduces mechanically and electrically induced distortion.

Specification

Dimensions: FI-52 NCF Body length 41.1mm x 39.0mmΦ x 77.2mm overall length
For cable diameters from 6mm to 20mm
View full details
Product Product subtotal Quantity Price Product subtotal
Furutech FI-52 NCF High End Performance 20A IEC Connector
Furutech FI-52 NCF High End Performance 20A IEC Connector
Furutech FI-52 NCF High End Performance 20A IEC Connector
$559.00
$349.00/ea
 $0.00
Sold out
$559.00
$349.00/ea
 $0.00

FI-52 NCF
High End Performance NCF 20A IEC Connector

Furutech's FI-52 NCF Piezo Ceramic series connectors feature a multilayer non-magnetic stainless steel and silver-plated carbon fiber shell, combined with a special damping and insulating material. Inside, they utilize the Nano Crystal² Formula (NCF), which generates negative ions to eliminate static and converts thermal energy into far-infrared, providing exceptional electrical and mechanical damping performance. Additionally, Furutech's Earth/Ground Jumper System eliminates electromagnetic interference caused by metal parts like connector screws, ensuring the purity of signal transmission. This system is protected by U.S. Patent No. 6,669,491.

FI-52 NCF---20A 125V /16A 250V AC
< Screw Tightening Torque >
Terminal screws: 180 cN·m
Screws securing the body and housing: 50 cN·m
Cable clamp screws: 30 cN·m
Please ensure that the tightening torque does not exceed the specified limits.
